Hard Rock
Crushing and Milling
Go-Mine manufactures robust equipment engineered for the African mining landscape. Our machinery delivers maximum throughput and precision in hard rock processing. From initial crushing stages to fine milling, we provide the durability and high recovery rates essential for profitable and sustainable mining operations.
Hard Rock Components
Our jaw crushers handle the toughest ore with ease.
Our Hammer Mills deliver relentless impact where it counts.
Our Ball Mills deliver precision grinding for maximum recovery.
Our Wet Pan Mills provide reliable fine gold milling with proven performance.

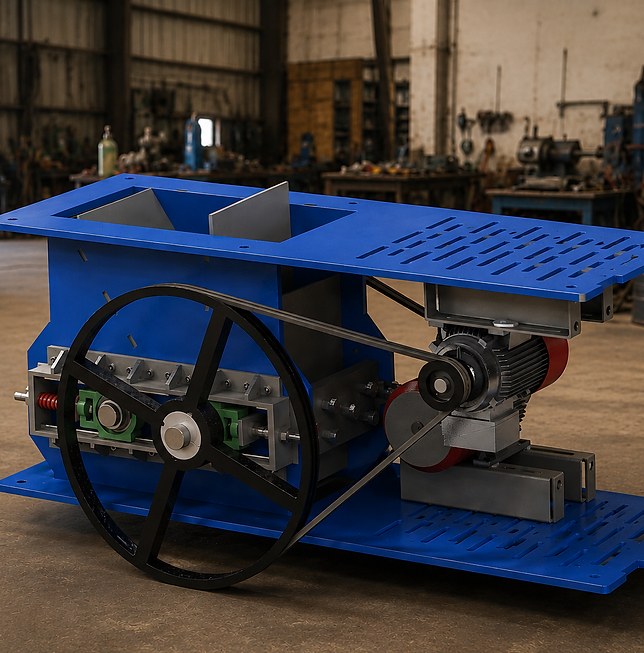

Our Double Roller Crushers deliver consistent crushing, every time.
Mobile Gold Processing Plants (MGP Series)
The Go-Mine *Mobile Gold Processing (MGP) Series* is a range of fully integrated hard-rock processing plants designed to provide efficient crushing, milling and gravity gold recovery in a compact, transportable package. Engineered for rapid deployment and reliable operation, these plants are ideal for exploration projects, pilot operations, contract mining, small to medium-scale producers and remote mining sites where mobility and fast installation are essential.
​
Each MGP plant combines the key stages of hard-rock gold processing into a single, easy-to-operate system. By integrating crushing, milling and gravity concentration, the MGP range reduces installation time, minimises civil works and allows mining operations to begin processing quickly with a practical and proven solution.
​
Every plant is custom engineered to suit the client's ore characteristics, production requirements and site conditions. Built with durability and ease of maintenance in mind, the MGP Series is manufactured to withstand demanding mining environments while delivering reliable performance and maximum gold recovery.
Available Models
MGP - 1
Mobile 1–2 TPH Gold Ore Crushing, Milling & Gravity Concentration Plant
Designed for prospecting, bulk sampling, test work and small-scale mining operations, the MGP-1 offers a compact and highly portable processing solution capable of treating 1 to 2 tonnes of gold ore per hour. Combining crushing, milling and gravity concentration into a single transportable plant, it provides reliable performance, rapid deployment and efficient gold recovery, making it ideal for exploration projects and remote mining applications.
Ore enters a heavy-duty hopper with a 100 mm sizing grizzly. A 300 mm sidewall conveyor moves sized material to the jaw crusher. The jaw crusher uses ribbed liners at a 20 mm setting for efficient crushing. Second conveyor transfers material to a splitter box with a 25 mm water inlet. Slurry is processed by dual hammer mills with adjustable outlet screens (300µm to 2mm). A vertical screw pump moves the milled slurry to the centrifugal concentrator. The concentrator isolates free and oxide gold, separating concentrate from tailings. Tailings are discharged via a dedicated pipe for storage or further processing.
1 - 2 TPH ( Depending on Rock Type)
 5,9m long x 2,31m wide x 2,47 high
10,62 long x 2,31 wide x 2,65 high
Running: 31.25Kw, 380VAC / Start-up: 39Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 4,000 Lt water per hour
1" / 25mm
Water Pump & Generator (Only Available on Request)
MGP - 2
Mobile 5 TPH Gold Ore Crushing, Milling & Gravity Concentration Plant
Designed for small to medium-scale commercial mining operations, the MGP-2 offers a powerful and efficient mobile processing solution capable of treating 5 tonnes of gold ore per hour. Combining crushing, milling and gravity concentration into a compact, transportable plant, it delivers reliable performance, rapid deployment and excellent gold recovery while minimising installation time and civil works.
Ore enters a heavy-duty hopper fitted with a 100 mm sizing grizzly. A 300 mm sidewall conveyor transfers the correctly sized material to the jaw crusher, which uses ribbed liners at a 20 mm closed-side setting for primary crushing. The crushed material then passes through a double-roll crusher set at approximately 7 mm for secondary size reduction. Material is milled in an attrition mill to achieve 100% passing 300 microns, with approximately 50% passing 80 microns. A vertical screw pump transfers the milled slurry to the centrifugal concentrator, where free and oxide gold are recovered as concentrate. Tailings and sulphide-bearing material report to the overflow and are discharged through a dedicated pipe for storage or further processing.
5 TPH (Depending on the Rock Type)
7.8m long x 2,4m wide x 3,1 high
13,8 long x 2,4 wide x 3,7 high
Running: 52,70Kw, 380VAC / Start-up: 77,70Kw, 380VAC ( 50Hz )
( Based on SG of 1.8 ) 9,000 Lt water per hour
2" / 50mm
Water Pump & Generator (Only Available on Request)

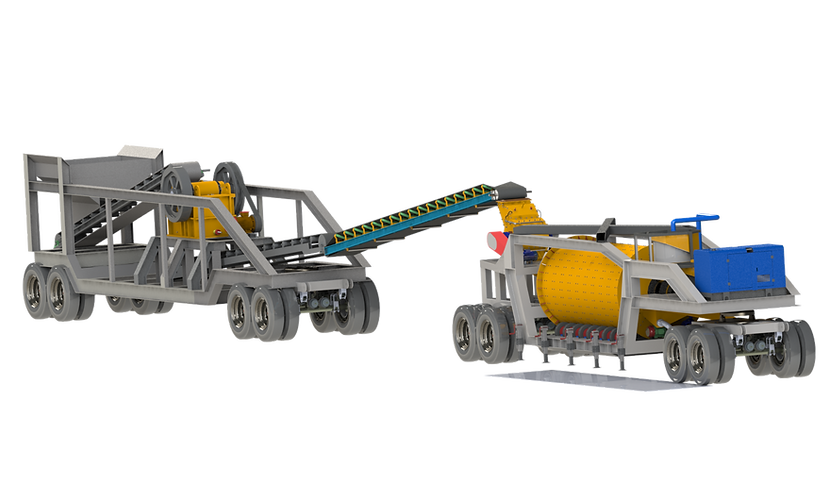

MGP - 3
Mobile 10–12 TPH Gold Ore Crushing, Milling & Gravity Concentration Plant
Designed for higher production mining operations, the MGP-3 provides a robust mobile processing solution capable of treating 10 to 12 tonnes of gold ore per hour. Featuring integrated crushing, milling and gravity concentration, the plant is engineered for continuous operation, dependable performance and maximum gold recovery, making it ideal for expanding mining projects requiring increased throughput and operational flexibility.
Ore enters a heavy-duty hopper fitted with a 320 mm sizing grizzly. A 600 mm sidewall feed conveyor transfers the correctly sized material to a 400 × 600 mm jaw crusher fitted with ribbed liners for primary crushing. The crushed material is discharged onto a 600 mm sidewall transfer conveyor and then moved by a 600 mm troughed conveyor to the milling section. Depending on the client’s requirements, the plant can be fitted with either an impact mill or a double-roll mill for secondary size reduction. Material then passes through a transfer launder into the attrition mill, where it is milled to achieve 100% passing 300 microns, with approximately 50% passing 80 microns. A vertical screw pump transfers the milled slurry to the gravity recovery section, where a primary 800 mm bowl centrifugal concentrator recovers the bulk of the free and oxide gold. The remaining material is then processed through a secondary 800 mm bowl centrifugal concentrator for further recovery and concentrate upgrading.
1 0 - 12 TPH ( Depending on Rock Type)
Crushing trailer: 14.1m long x 2,55m wide x 3,6 high
Milling trailer: 12.9m long x 2,55m wide x 3,5 high
36,5 long x 2,55 wide x 3,8 high
Running: 110,5Kw, 380VAC / Start-up: 137,75Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 24,000 Lt water per hour
2" / 50mm
Water Pump & Generator (Only Available on Request)
Static Gold Processing PlantsÂ
Go-Mine's static gold processing plant range is designed for mining operations requiring reliable, continuous production and maximum gold recovery. Engineered for long-term performance, these plants combine crushing, milling, gravity concentration and, where required, complete chemical gold recovery into fully integrated processing solutions tailored to your mine.
​
Our range includes compact 1–2 tonnes per hour (TPH) plants for prospecting and small-scale operations, 3–5 TPH processing plants with optional CIP leach circuits, 20–30 TPH medium-scale processing plants complete with clean-out facilities and site infrastructure, as well as standard gravity processing plants available in 5 TPH and 10 TPH configurations, with the larger models incorporating gold smelting equipment for a complete recovery solution.
​
Every static plant is custom engineered to suit your ore characteristics, production requirements and site conditions. Built for durability, ease of maintenance and efficient operation, Go-Mine's static processing plants provide scalable solutions for mining operations ranging from exploration and small-scale production to fully established commercial mines.
Available Models
RSM - 1
Static 1–2 TPH Gold Processing Plant
A compact static processing unit designed for small-scale gold operations, bulk sampling and test work. The RSM-1 combines crushing, milling and gravity concentration into a practical plant capable of processing 1 to 2 tonnes of gold ore per hour.
Ore enters a heavy-duty feed hopper fitted with a 100 mm sizing grizzly. A 300 mm sidewall feed conveyor transfers the correctly sized material to the jaw crusher, which is fitted with ribbed liners and operates at a 20 mm closed-side setting for primary crushing. Crushed material is conveyed to a hopper splitter box fitted with a 25 mm water inlet, where process water is introduced before being evenly distributed to two hammer mills. Each hammer mill is equipped with 16 star-type hammers and interchangeable outlet screens ranging from 300 microns to 2 mm, allowing the final product size to be adjusted according to the ore characteristics. The milled slurry is collected in a transfer launder before reporting to the centrifugal concentrator, where free and oxide gold are recovered as concentrate. Tailings and sulphide-bearing material report to the overflow for further treatment or disposal.
1 - 2 TPH ( Depending on Rock Type)
2,4m long x 2,4m wide x 1,9 high
9m long x 2 wide x 2,72 high
Running: 31.25Kw, 380VAC / Start-up: 39Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 4,000 Lt water per hour
1" / 25mm
Water Pump & Generator (Only Available on Request)
RSPU - 1
Complete 3–5 TPH Gold Processing and CIP Plant
A complete small-scale gold processing solution combining crushing, milling, gravity concentration and a CIP leach plant. The RSPU-1 is designed for operations requiring both gravity recovery and chemical recovery from one integrated plant.
Ore enters a heavy-duty feed hopper fitted with 100 mm grizzly bar openings. A 300 mm sidewall feed conveyor transfers the correctly sized material to a 300 × 200 mm jaw crusher fitted with ribbed liners for primary crushing. The crushed ore is discharged onto a 300 mm sidewall transfer conveyor and fed to a double-roll mill for secondary size reduction before entering the attrition mill for fine milling and mineral liberation.
​
The milled slurry is processed through a 450 mm centrifugal concentrator, where free and oxide gold are recovered as concentrate. The oxide concentrate is transferred to an Ami-Flo shaking table for further upgrading, while sulphide-bearing tailings are directed to a stockpile. The stockpiled sulphides and oxide tailings are then processed through a 1 tonne per hour CIP leach plant to recover remaining gold not captured by gravity concentration.
​
The plant includes a 3 × 1-foot vibrating carbon screen, an electrically driven hoist with a material basket and 100 m cable, two 1.5-inch centrifugal material pumps and a 1,000-litre elevated water storage tank. Supporting infrastructure includes a 2.4 × 2.4 m timber site office with a corrugated steel roof and lockable door, a gas furnace with a 2 kg crucible and mould, and a portable toilet.
​
The complete operation can be secured by a 1.8 m-high, 200 m-long chain-link fence supplied with four corner posts, 40 droppers, a 3 m access gate and two rolls of supporting wire.
3 - 5 TPH ( Depending on Rock Type)
3 x 12m Trai Axel Truck Links (Super Links)
20 long x 20 wide x 3,6 high
Running: 68Kw, 380VAC / Start-up: 85Kw, 380VAC (50 Hz)
( Based on SG of 1.8 )Â 9,800 Lt water per hour
2" / 50mm
Water Pump, Generator, Compressor, Compressor hose 1 " , Lay flat or HDPE water pipe, 2 x Jack hammers, Civils work and commissioning (Only Available on Request)
RSPU - 1.2
3–5 TPH Gold Processing Plant Without Leaching
A complete small-scale processing plant incorporating crushing, milling and gravity concentration without a chemical leach circuit. The RSPU-1.2 is ideal for ores where free gold can be efficiently recovered through gravity concentration or where leaching will be added separately.
Ore enters a heavy-duty feed hopper fitted with 100 mm openings between the grizzly bars. A 300 mm sidewall conveyor transfers the correctly sized material to a 300 × 200 mm jaw crusher fitted with ribbed liners for primary crushing. The crushed ore is discharged onto a 300 mm sidewall transfer conveyor and processed through a double-roll mill, followed by an attrition mill for fine milling and mineral liberation.
​
The milled slurry is fed to a 450 mm centrifugal concentrator, where free and oxide gold are separated from the sulphide-bearing material. The oxide concentrate is upgraded on an Ami-Flo shaking table, while the sulphide tailings are directed to a stockpile. The stockpiled sulphides and oxide tailings are then processed through a 1 tonne per hour CIP leach plant to recover the remaining gold.
​
The system includes a 3 × 1-foot vibrating carbon screen, two 1.5-inch centrifugal material pumps and a 1,000-litre water storage tank mounted on a stand. An electrically driven hoist, supplied with a material basket and 100 m cable, assists with material handling.
​
Supporting infrastructure includes a 2.4 × 2.4 m timber site office with a corrugated steel roof and lockable door, a gas furnace with a 2 kg crucible and mould, and a portable plastic toilet. The site is secured with a 1.8 m-high, 200 m-long chain-link fence, including four corner posts, 40 droppers, a 3 m access gate and two rolls of supporting wire.
3 - 5 TPH ( Depending on Rock Type)
3 x 12m trucks
20 long x 20 wide x 3,6 high
Running: 65Kw, 380VAC / Start-up: 85Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 9,800 Lt water per hour
2" / 50mm
Water Pump, Generator, Compressor, Compressor hose 1 " , Lay flat or HDPE water pipe, 2 x Jack hammers, Civils work and commissioning (Only Available on Request)
RSPU - 2
Complete 20–30 TPH Medium-Scale Gold Processing Plant
A fully integrated medium-scale gold processing solution designed for established mining operations. The RSPU-2 includes crushing, milling, gravity concentration, a CIP leach plant and a containerised facility that can be configured as a clean-out room, site office and secure storeroom.
Ore enters a heavy-duty feed hopper fitted with a drag-belt feeder. A 30 mm sidewall feed conveyor transfers the material to a 300 × 200 mm jaw crusher fitted with ribbed liners for primary crushing. The crushed ore is discharged onto a 200 mm sidewall transfer conveyor and fed through a double-roll mill, followed by an attrition mill for fine milling and improved mineral liberation.
​
The milled slurry is processed through an 800 mm centrifugal concentrator, where free and oxide gold are separated from the sulphide-bearing material. The oxide concentrate is upgraded on an Ami-Flo shaking table, while the sulphide tailings are directed to a stockpile. The stockpiled sulphides and oxide tailings are then processed through a 1 tonne per hour CIP leach plant to recover the remaining gold.
The plant includes a 3 × 1-foot vibrating carbon screen, two 1.5-inch centrifugal material pumps and a 1,000-litre water storage tank mounted on a stand. An electrically driven hoist with a material basket and 100 m cable is supplied for material handling.
​
Supporting infrastructure includes a 2.4 × 2.4 m timber site office with a corrugated steel roof and lockable door, a gas furnace with a 2 kg crucible and mould, and a portable plastic toilet. The site is secured by a 1.8 m-high, 200 m-long chain-link fence supplied with four corner posts, 40 droppers, a 3 m access gate and two rolls of supporting wire.
20 - 30 TPH ( Depending on Rock Type)
3 x 12m trucks
 20m long x 20m wide x 3,6 high
Running: 68Kw, 380VAC / Start-up: 85Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 9,800 Lt water per hour
2" / 50mm
Water Pump, Generator, Compressor, Compressor hose 1 " , Lay flat or HDPE water pipe, 2 x Jack hammers, Civils work and commissioning (Only Available on Request)
SGP - 1
Standard 5 TPH Gold Processing Plant
A reliable static processing unit designed to treat approximately 5 tonnes of gold ore per hour. The SGP-1 combines crushing, milling and gravity concentration into a straightforward and efficient plant suitable for continuous small-scale production.
Ore enters a heavy-duty feed hopper fitted with a vibrating belt feeder. A 300 mm sidewall feed conveyor transfers the material to a 300 mm double-roll mill for size reduction, followed by an attrition mill for fine milling and improved mineral liberation.
​
The milled slurry passes over a sizing screen set at 300 microns, ensuring that only correctly sized material continues to the recovery circuit. A transfer pump moves the screened slurry to a surge-flow bin, which regulates the feed to the 450 mm centrifugal concentrator.
​
The centrifugal concentrator separates free and oxide gold from the sulphide-bearing material. The oxide concentrate is upgraded on an Ami-Flo shaking table, while the sulphide tailings are directed to a stockpile for storage or further processing.
​
Final concentrate can be smelted using the supplied 2 kg LP gas furnace.
4 - 6 TPH ( Depending on Rock Type)
1 x super-link
20,5m long x 4m High x 6.6m wide
Running: 49Kw, 380VAC / Start-up: 58,5Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 8,400 Lt water per hour
2" / 50mm
Water Pump, Generator & Lay-flat or HDPE water pipe (Only Available on Request)
SGP - 2
Standard 10 TPH Gold Processing Plant with Furnace
A complete 10 TPH static gold processing unit incorporating crushing, milling, gravity concentration and a furnace for final gold recovery. The SGP-2 is designed for operations requiring higher throughput and an integrated route from ore processing to concentrate smelting.
Ore enters a heavy-duty feed hopper fitted with a vibrating belt feeder. A 600 mm sidewall feed conveyor transfers the material to a 600 mm double-roll mill for primary size reduction, followed by an attrition mill for fine milling and improved mineral liberation.
​
The milled slurry passes over a sizing screen set at 300 microns, ensuring that only correctly sized material proceeds to the recovery circuit. A transfer pump delivers the screened slurry to a surge-flow bin, providing a controlled and consistent feed to the 800 mm centrifugal concentrator.
​
The centrifugal concentrator separates free and oxide gold from the sulphide-bearing material. The primary concentrate is upgraded on an Ami-Flo shaking table before being further refined on an Ami-Fin-Micro shaking table to produce a high-grade final concentrate. Sulphide tailings are directed to a stockpile, while concentrated sulphides can be treated in the integrated LGG (Ammonia Leach Plant) for additional gold recovery.
​
Final concentrate can be smelted using the supplied 2 kg LP gas furnace.
1 0 - 15 TPH ( Depending on Rock Type)
1 x super-link and 1 x 12m truck
30m long x 4m High x 15m wide
Running: 153Kw, 380VAC / Start-up: 184Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 16,900 Lt water per hour
2" / 50mm
Water Pump, Generator & Lay-flat or HDPE water pipe (Only Available on Request)
Semi - Mobile Gold Processing Plants (Containerised)Â
Go-Mine's static gold processing plant range is designed for mining operations requiring reliable, continuous production and maximum gold recovery. Engineered for long-term performance, these plants combine crushing, milling, gravity concentration and, where required, complete chemical gold recovery into fully integrated processing solutions tailored to your mine.
​
Our range includes compact 1–2 tonnes per hour (TPH) plants for prospecting and small-scale operations, 3–5 TPH processing plants with optional CIP leach circuits, 20–30 TPH medium-scale processing plants complete with clean-out facilities and site infrastructure, as well as standard gravity processing plants available in 5 TPH and 10 TPH configurations, with the larger models incorporating gold smelting equipment for a complete recovery solution.
​
Every static plant is custom engineered to suit your ore characteristics, production requirements and site conditions. Built for durability, ease of maintenance and efficient operation, Go-Mine's static processing plants provide scalable solutions for mining operations ranging from exploration and small-scale production to fully established commercial mines.
Available Models

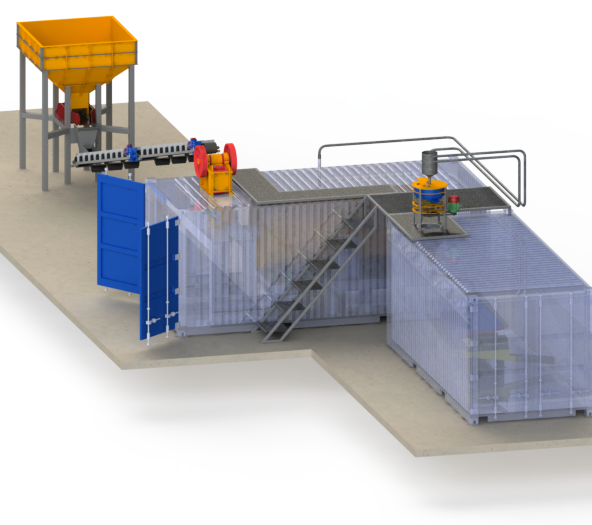

CGP - 1
Containerised 5 TPH gold ore crushing, milling and gravity concentration unit.
The CGP-1 is a containerised gold processing plant designed to treat 4–6 tonnes of ore per hour, depending on rock type. It combines crushing, attrition milling, sizing, centrifugal concentration, shaking-table upgrading and final smelting in one compact, transportable system.
Material is loaded into the feed hopper and discharged at a controlled rate by the vibrating belt feeder onto the 300 mm sidewall conveyor.
Â
The conveyor feeds the 300 mm double roller mill for primary size reduction, after which the material passes through the attrition mill for further grinding and mineral liberation.
​
The milled slurry is screened at 300 microns, with the correctly sized material transferred by pump to the surge-flow bin. From there, the slurry is fed consistently into the 450 mm centrifugal concentrator.
Â
Sulphide-rich tailings are discharged to a stockpile, while the oxide-rich concentrate is upgraded on the Ami-Flo shaking table.
​
The final concentrate is then smelted in the 2 kg LP gas furnace to produce a gold doré button.
4 - 6 TPH ( Depending on Rock Type)
1 x super - link
20,5 m long x 4m High x 6.6m wide
Running: 49Kw, 380VAC / Start-up: 58,5Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 8,400 Lt water per hour
2" / 50mm
Water Pump, Generator & Lay-flat or HDPE water pipe (Only Available on Request)
CGP - 1.5
Containerised 5 TPH gold ore crushing, milling and gravity concentration unit.
The CGP-1.5 is a containerised 4–6 TPH gold processing plant combining crushing, milling, screening and dual centrifugal concentration. Its two 450 mm concentrators improve recovery capacity, while the Ami-Flo shaking table and 2 kg LP gas furnace provide final concentrate upgrading and smelting.
Material is loaded into the feed hopper and discharged at a controlled rate by the vibrating belt feeder onto the 300 mm sidewall conveyor.
Â
The conveyor feeds the 300 mm double roller mill for primary size reduction, after which the material passes through the attrition mill for further grinding and mineral liberation.
​
The milled slurry is screened at 300 microns, with the correctly sized material transferred by pump to the surge-flow bin. From there, the slurry is evenly distributed to two 450 mm centrifugal concentrators for improved gravity recovery.
​
Sulphide-rich tailings are discharged to a stockpile, while the oxide-rich concentrates are upgraded on the Ami-Flo shaking table.
Â
The final concentrate is then smelted in the 2 kg LP gas furnace.
4 - 6 TPH ( Depending on Rock Type)
1 x super-linkÂ
20,5m long x 4m High x 6.6m wide
Running: 50Kw, 380VAC / Start-up: 60Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 8,400 Lt water per hour
2" / 50mm
Water Pump, Generator & Lay-flat or HDPE water pipe (Only Available on Request)
CGP - 2
Containerised 10 - 15 TPH gold ore crushing, milling and gravity concentration unit.
The CGP-2 is a containerised gold processing plant designed to process 10–15 tonnes of ore per hour, depending on the rock type. It combines crushing, milling, gravity concentration, concentrate upgrading, ammonia leaching and final smelting in one compact, transportable system, delivering maximum gold recovery from both oxide and sulphide ores.
Material is loaded into the feed hopper and discharged at a controlled rate by the vibrating belt feeder onto the 600 mm sidewall conveyor.
Â
The conveyor feeds the 600 mm double roller mill for primary size reduction, after which the material passes through the attrition mill for further grinding and mineral liberation.
​
The milled slurry is screened at 300 microns, with the correctly sized material transferred by pump to the surge-flow bin. From there, the slurry is fed consistently into the 800 mm centrifugal concentrator. Sulphide-rich tailings are directed to a stockpile, while the oxide-rich concentrate is upgraded on the Ami-Flo shaking table before undergoing final cleaning on the Ami-Fin-Micro shaking table.
​
Concentrated sulphides are further treated in the integrated LGG Ammonia Leach Plant to maximise gold recovery.
The final concentrate is then smelted in the 2 kg LP gas furnace to produce a gold doré button.
1 0 - 15 TPH ( Depending on Rock Type)
1 x super-link and 1 x 12m truck
30m long x 4m High x 15m wide
Running: 153Kw, 380VAC / Start-up: 184Kw, 380VAC (50 Hz)
( Based on SG of 1.8 ) 16,900 Lt water per hour
2" / 50mm
Water Pump, Generator & Lay-flat or HDPE water pipe (Only Available on Request)
